描述

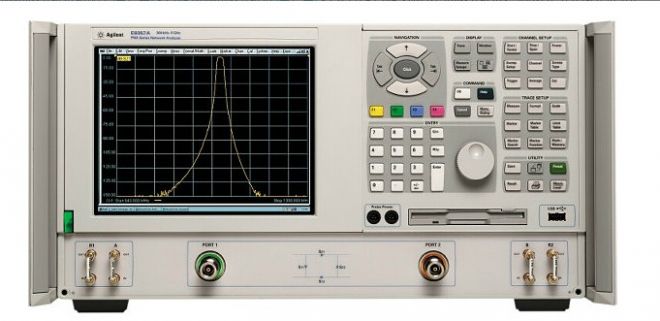

Agilent E8357A矢量網絡分析儀是PNA系列網絡分析儀平臺的成員。PNA提供快掃描、寬動態范圍、低跡線噪聲和靈活的連通能力，以應對測試挑戰。

E8357A為夾具內和芯片上器件提供TRL/LRM校準（可啟用4個接收器），以及適用于有源器件的標準偏置三通和擴展動態范圍的標準直接接收器接入。

強大的自動能力和自助工具使該儀器能很好適應研發和制造的需要。PNA系列有16個獨立測量通道，內裝硬盤驅動器，并提供鼠標。

Description Availability Availability Availability
Test Set
Model#-015 Configurable test set X
Model#-014 Configurable test set X X
Power Configuration
Model#-1E1 Extended power range Standard X X
Timebase Stability
Model#-1E5 Add high stability timebase Standard X X
Measurement Features
Model#-010 Time domain capability X X X
Accessories
Model#-1CM Rack mount kit without handles X X X
Model#-1CP Rack mount kit with handles X X X
N4688A USB CD R/W drive X X X
N4689A USB Hub X X X
Calibration Documentation
Model#-UK6 Commercial calibration certificate X X X
with test data
Warranty and Service
One, three and five year warranty and service plans are available. Contact your local Agilent sales office
for details.
Calibration
Calibration is available in three or five year plans. Contact your local Agilent sales office for details.
2
PNA  Series RF Network Analyzers
E8356/7/8A 2-port, 4 receiver, 300kHz – 3/6/9GHz
E8801/2/3A 2-port, 3 receiver, 300kHz – 3/6/9GHz
N3381/2/3A 3-port, 4 receiver, 300kHz – 3/6/9GHz
Options
To add options to a product, use the following ordering scheme
Model: Model# (ex: E8358A)
Model Options: Model#-opt# (ex: E8356A-015)

Agilent RF PNA Network Analyzer
Each RF PNA instrument is an integrated network analyzer
with a built-in LCD display, hard and floppy disk drives,
S-parameter test set and synthesized source. The analyzer
has two or three 50-ohm Type-N (f) test ports. Included with
each instrument is a mouse, keyboard, CD-ROM containing a
copy of online help and programming documentation, and
a 1-year return-to-Agilent service warranty.
?  E8356A network analyzer,300kHzto3GHz,2port, 4receiver
?  E8357A network analyzer,300kHzto6GHz,2port, 4receiver
?  E8358A network analyzer,300kHzto9GHz,2port, 4receiver
?  E8801A network analyzer,300kHzto3GHz,2port, 3receiver
?  E8802A network analyzer,300kHzto6GHz,2port, 3receiver
?  E8803A network analyzer,300kHzto9GHz,2port, 3receiver
?  N3381A network analyzer,300kHzto3GHz,3port, 4receiver
?  N3382A network analyzer,300kHzto6GHz,3port, 4receiver
?  N3383A network analyzer,300kHzto9GHz,3port, 4receiver
Options
?  Option 010 time-domain capability
For viewing reflection and transmission responses in
time or distance domain.
?  Option 014 configurable test set (except E8356/7/8A)
Adds front panel access to the source, the receivers
and couplers. This provides the ability to improve
measurement sensitivity for measuring low-level signals,
or to add components and other peripheral instruments
for a variety of measurement applications.
?  Option 015 configurable test set (E8356/7/8A only)
Adds front panel access to the source output and coupler
input on both ports 1 and 2. Also, 35 dB step attenuators
are added between the couplers and receivers. This
capability provides the ability to improve measurement
sensitivity for measuring low-level signals, or to add
components and other peripheral instruments for a
variety of measurement applications.
?  Option 1CM rack mount kit
Adds a rack mount (part number 5063-9216) and rail kit
(E3663AC) for use without handles.
?  Option 1CP rack mount kit
Adds a rack mount (part number 5063-9236) and rail kit
(E3663AC) for use with previously supplied handles.
?  Option 1E1 70 dB step attenuator (Included as standard
equipment on E8356/7/8A)
Adds a built-in 70 dB step attenuator to extend the
output power range down to -85 dBm.
?  Option 1E5 high-stability time base (Included as standard
equipment on E8356/7/8A)
Replaces standard time base reference with a higher
stability unit.
Documentation
The PNA Online Help system is available within PNA
instrument in the following languages: English, German,
Spanish, French, Japanese, and Chinese.
The PNA Service Guide and Online Help system are
available on the Web: www.na.tm.agilent.com/pna
Certification options
?  Option UK6 Commercial calibration certificate with test data
For online information about Agilent’s
service and support products visit:
www.agilent.com/find/tm_services4
Measurement accessories
A complete line of RF test accessories can be found in
the Agilent RF and Microwave Test Accessories Catalog
(literature number 5968-4314EN) or by visiting
www.agilent.com/find/mta
Accessories are available in these connector types: 50 ohm
Type-N, 3.5 mm, 7 mm, and 7-16. Test port cables and a
calibration kit should be added for a complete measurement
system. A verification kit is used to verify corrected system
performance.
Test-port cables
Test port cables are used to connect the network analyzer
to the device under test.
? N6314A 50 ohm Type-N RF cable, 300 kHz to 9 GHz
Includes one 610 mm (24 in) cable with male connectors
(part number 8120-8862)
? N6315A 50 ohm Type-N RF cable, 300 kHz to 9 GHz
Includes one 610 mm (24 in) cable with both female and
male connectors (part number 8121-0027)
Calibration kits
Mechanical calibration kits include standards, such as
opens, shorts and loads, which are measured by the
network analyzer for increased measurement accuracy.
Electronic calibration (ECal) kits replace mechanical
calibration standards with one solid-state calibration
module that is controlled by the network analyzer to
present many different impedances to the test ports. A
full two-port calibration can be performed quickly with a
single connection. This technique reduces operator errors
and connector wear and abrasion.
Choose a calibration kit for each connector type to be used.
Economy, includes:
? open standards (male and female)
? short standards (male and female)
? fixed-termination standards (male and female)
? in-series adapters
Standard, includes the devices in the economy kit and adds:
? connector tools
Precision, includes the devices in the economy kit and adds:
? 50 ohm airline for TRL calibration
? TRL adapters
? connector tools
